Connections

Save and reuse database, cloud storage, and Kafka credentials across your flows.

All connection types and secrets are managed from a single Connections page, accessible via Settings → Connections → All connections in the left sidebar. Use the tabs to switch between Overview, Database, Cloud Storage, Kafka, Google Analytics, and Secrets. LLM provider keys live under Settings → AI — see Provider Setup.

Connections store your credentials securely (passwords are encrypted via Secrets) so you can reference them by name in Database Reader, Database Writer, Cloud Storage Reader, and Cloud Storage Writer nodes without re-entering credentials each time.

Not in Flowfile Lite

Saved connections require the full desktop/server build. The browser-only Flowfile Lite edition has no backend, so database, cloud storage, and Kafka connections (and the secrets that back them) are not available.


Database Connections

Supported Databases

Database Type Key
PostgreSQL postgresql
MySQL mysql
SQLite sqlite
DuckDB duckdb
SQL Server mssql
Denodo denodo
Snowflake snowflake — see Snowflake

File-based connections (SQLite, DuckDB)

SQLite and DuckDB connect to a local database file path (e.g. /path/to/database.db or /path/to/analytics.duckdb) — no host, port, or credentials are required.

DuckDB single-writer files

A DuckDB file allows many concurrent readers but only one writer at a time. When a flow writes to a DuckDB file, close other tools (e.g. the DuckDB CLI or an IDE) that have the same file open.

Denodo (PostgreSQL-compatible port)

Denodo connections use Denodo's PostgreSQL-compatible interface (port 9996 by default) through the standard psycopg2 driver, so no Denodo-specific driver is needed. Point the connection at the Virtual DataPort host, use the virtual database as Database, and enable SSL when the server requires it. Reading views, running queries and browsing from the reader node are supported — virtual databases are listed as schemas and views as tables. Writing to Denodo has not been verified against a live Denodo server. Arrow Flight SQL (port 9994) for faster large extracts is planned.

DuckDB INTERVAL columns

INTERVAL columns are read as text — calendar intervals (months) have no fixed length, so there is no matching Polars type.

Creating a Database Connection

  1. Open Settings → Connections → All connections from the left sidebar and select the Database tab
  2. Click Create New Connection
  3. Fill in the connection fields:
Field Description Example
Connection Name Unique identifier for this connection prod_postgres
Database Type PostgreSQL, MySQL, SQLite, DuckDB, SQL Server, Denodo, or Snowflake postgresql
Host Database server hostname db.example.com
Port Database port 5432
Database Database name analytics
Username Database user readonly_user
Password Stored as an encrypted secret
Enable SSL Use SSL for the connection Recommended for cloud databases
  1. Click Update Connection to save

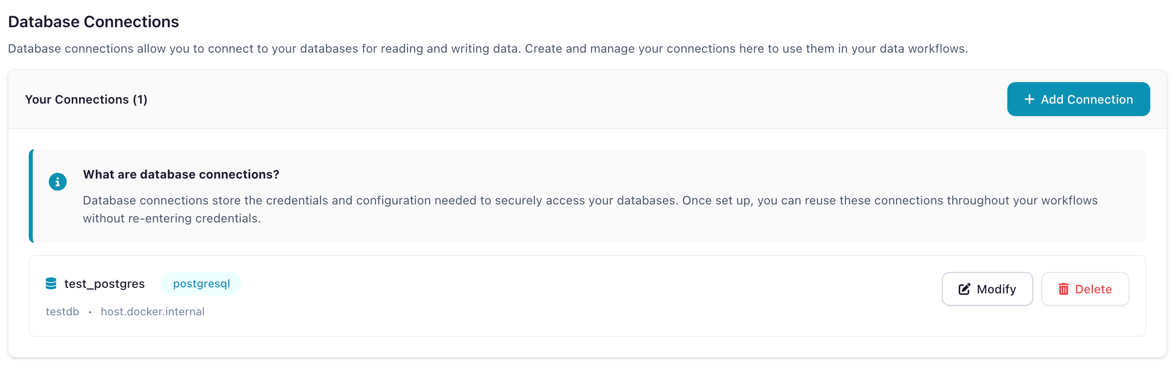

Database Connection Manager

The Connections page showing the Database tab with saved connections

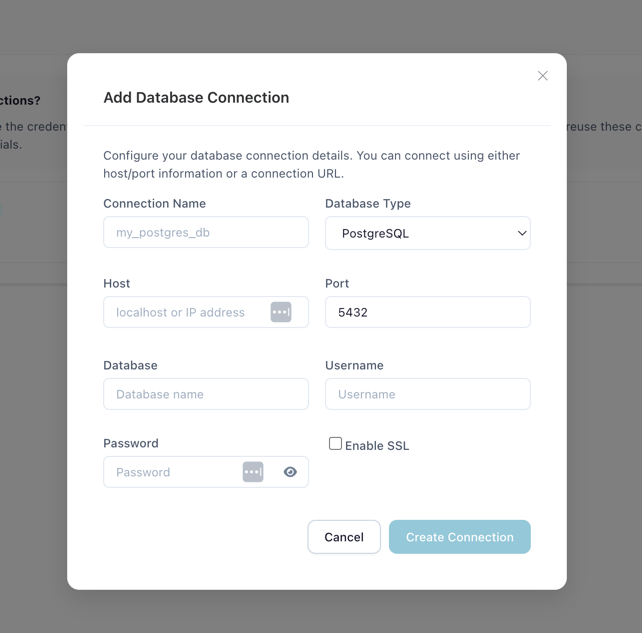

Create Database Connection

Creating a new PostgreSQL connection

Snowflake

A Snowflake connection replaces Host, Port, Password and SSL with its own fields: an account, a sign-in method, a warehouse and an optional default database. A connection holds one credential (a token, a key or a browser sign-in) and stores it encrypted like any other password.

Account. Enter the account identifier (myorg-myaccount), its host (myorg-myaccount.snowflakecomputing.com), or paste a link copied from Snowsight. The form shows the host it resolved to under the field.

Sign-in method. Snowflake no longer accepts a password on its own, so the form offers three methods:

Method Available in Use it for
Browser sign-in Desktop app and local installs Your own account. Opens your browser; your Snowflake password never passes through Flowfile.
Access token Every install A personal account on a server, or when browser sign-in is turned off for your account.
Key-pair Every install Service users and scheduled flows.

Pick Browser sign-in under Sign-in method, click Sign in with Snowflake, sign in in the browser tab that opens, and return to the form. It then shows who you are signed in as and fills the warehouse and database lists.

  • The sign-in belongs to you: a browser-signed-in connection cannot be shared with a group.
  • It is bound to one role. Set Role before signing in (empty uses your default role); changing the role means signing in again.
  • Prefer a role with only the access your flows need over an administrator role such as ACCOUNTADMIN: every flow that uses the connection runs with that role.
  • When Snowflake's sign-in expires, using the connection reports it; edit the connection and sign in again.
  • It uses Snowflake's built-in sign-in for local applications. If an administrator has turned that off for the account, the form says so; use an access token or a key-pair instead.

Enter your Snowflake Username and paste the Access token. Generate one in Snowsight under your user menu: Settings → Authentication → Programmatic access tokens.

  • A token expires: 15 days by default, at most 365. When it has expired, generate a new one and paste it on the connection.
  • For a human user (not a service user), Snowflake accepts a token only when a network policy is attached to the user. Without one, connecting fails with a message saying so; ask an administrator to attach a policy that allows your IP address.

Enter the Snowflake Username, then Choose .p8 file (or paste the key), and the Passphrase if the key file is encrypted. The passphrase opens the key once and is not stored. Only RSA keys are accepted.

Create a key and register its public half on the user:

openssl genrsa 2048 | openssl pkcs8 -topk8 -inform PEM -out rsa_key.p8 -nocrypt
openssl rsa -in rsa_key.p8 -pubout -out rsa_key.pub
-- The contents of rsa_key.pub, without the BEGIN/END lines
ALTER USER etl_service SET RSA_PUBLIC_KEY='MIIBIjANBgkqh...';

Leave out -nocrypt to protect the key file with a passphrase.

With an access token or a key-pair, Connect signs in with what you entered and fills the warehouse and database lists.

Warehouse, database and role. Warehouse and Default database (optional) are lists filled from your session; you can also type a name. An empty warehouse or role uses the user's defaults in Snowflake. A query needs a warehouse, so set one when the user has no default.

A connection reaches every database its role may use; the default database is only what a node starts on, and the form leaves it empty unless you choose one. Each Read from Database and Write to Database node picks its own database in a Database dropdown above Schema; left empty, the node uses the connection's default database (or, with none, lists every database's schemas). A node with a database needs a schema too, and reads or writes database.schema.table. Writing needs a database, either on the node or on the connection.

Test. Each saved connection has a Test button in the list. It signs in and reports the user, role, warehouse and database the session got, or a plain reason it failed: no warehouse, a role that is not granted, a missing network policy, an expired token or sign-in, or an account that cannot be found.

Reading and writing. Snowflake connections work in the Read from Database and Write to Database nodes in Reference mode only; there is no inline Snowflake connection.

  • Snowflake upper-cases names that are not quoted. Columns written from Flowfile are created unquoted, so order_id becomes ORDER_ID; a name that is not a plain identifier, or is a reserved word, is quoted.
  • Database, schema and table names may hold $ or be double-quoted, as the lists offer them: a name that is not plain upper case arrives quoted ("USER$analyst", "My Schema"), and a quoted name keeps its case. Other databases keep the plain rule: letters, numbers and underscores only.
  • A write uploads the rows to a temporary stage, which needs no grant of its own, then copies them into the table, so the connection's role needs INSERT on the table, and CREATE TABLE on the schema when Flowfile creates it.
  • Replace recreates the table (CREATE OR REPLACE TABLE); Append creates it when it does not exist; Fail stops when it exists.

Installing. The desktop app and the Docker images include the Snowflake driver. A pip install needs the extra:

pip install "flowfile[snowflake]"

Without it, the Database Type list shows Snowflake (not installed) with that command underneath.

Docker and server installs

On a multi-user Docker or server install only Access token and Key-pair are offered; browser sign-in is available in the desktop app and local installs.

Using Database Connections in Flows

In a Database Reader or Database Writer node:

  1. Set Connection Mode to Reference
  2. Select your saved connection from the dropdown
  3. Configure schema, table, and query settings

Reference vs Inline Mode

Reference mode uses a saved connection (recommended). Credentials are encrypted, reusable, and supported by the code generator.

Inline mode lets you enter credentials directly in the node settings. This is convenient for quick tests but credentials are not reusable and inline connections cannot be exported to Python code.


Cloud Storage Connections

Supported Providers

Provider Description
AWS S3 Amazon Simple Storage Service (including S3-compatible services like MinIO)
Azure Data Lake Storage (ADLS) Azure Data Lake Storage Gen2 / Blob Storage
Google Cloud Storage (GCS) Google Cloud object storage buckets

Creating a Cloud Storage Connection

  1. Open Settings → Connections → All connections and select the Cloud Storage tab
  2. Click Add Connection
  3. Configure the connection:
Field Description
Connection Name Unique identifier (e.g., my_s3_storage)
Storage Type AWS S3, Azure Data Lake Storage, or Google Cloud Storage
AWS Access Key ID Your access key
AWS Secret Access Key Stored as encrypted secret
AWS Session Token (Optional) Access Key only: for temporary credentials; stored as encrypted secret
AWS Profile (Optional) AWS CLI only: a profile from the AWS config on the machine running Flowfile; blank uses the default credentials
AWS Region e.g., us-east-1
Custom Endpoint URL For S3-compatible services (MinIO, etc.), with any authentication method
Verify SSL On by default; turn off only for an endpoint with a self-signed certificate (S3 and ADLS; no effect on GCS)
Allow HTTP (unencrypted) endpoint Allows plain http:// endpoints (e.g., local MinIO)

Provider-specific fields

The fields above describe an AWS S3 connection. The credential fields adapt to the selected Storage Type: Azure Data Lake Storage uses an account name with service-principal or SAS-token credentials, and Google Cloud Storage uses a project ID with a service-account key.

  1. Click Create Connection

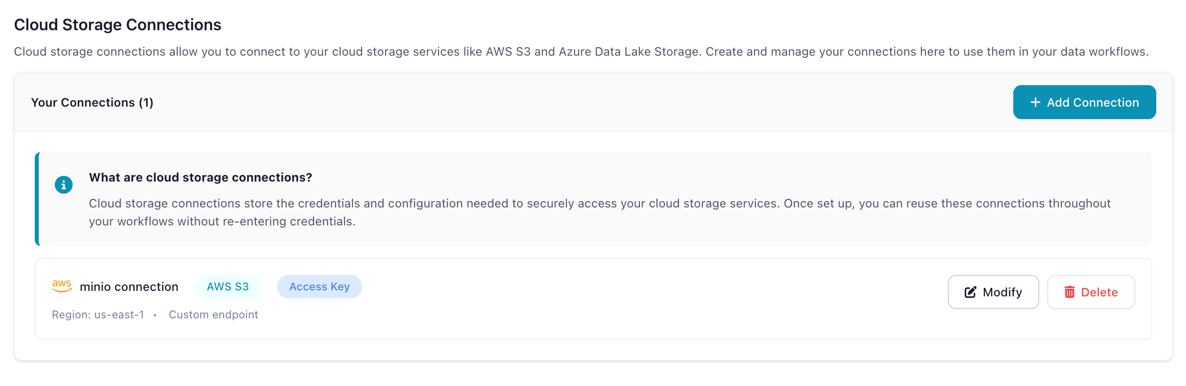

Cloud Connection Manager

The Connections page showing the Cloud Storage tab

Using Cloud Connections in Flows

In a Cloud Storage Reader or Cloud Storage Writer node, select your saved connection from the dropdown. No connection uses the credentials of the machine running Flowfile instead, and is unavailable on a multi-user server; see Running a node without a connection.

For a step-by-step tutorial, see Manage Cloud Storage.


Kafka Connections

Creating a Kafka Connection

  1. Open Settings → Connections → All connections and select the Kafka tab
  2. Click Add Connection
  3. Configure the connection:
Field Description
Connection Name Unique identifier (e.g., prod_kafka)
Bootstrap Servers Comma-separated list of broker addresses (e.g., broker1:9092,broker2:9092)
Security Protocol PLAINTEXT, SSL, SASL_PLAINTEXT, or SASL_SSL
SASL Mechanism PLAIN, SCRAM-SHA-256, or SCRAM-SHA-512 (when using SASL)
SASL Username / Password Credentials for SASL authentication
SSL CA Certificate CA certificate for SSL connections
SSL Certificate / Key Client certificate and key for mutual TLS
Schema Registry URL URL of the Confluent Schema Registry (optional)
  1. Click Create Connection

Using Kafka Connections in Flows

Select your saved Kafka connection when configuring the Kafka Source node. Kafka support is read-only — there is no Kafka writer node. See Kafka for the node's settings and a runnable example.


Security

  • Passwords and secret keys are stored as encrypted Secrets using Fernet encryption
  • Connection metadata (host, port, database name) is stored in the local database
  • Credentials are decrypted only at runtime when a flow executes
  • Each user's connections are isolated (Docker multi-user mode)
