Catalog

Organize, track, and govern your data flows and tables in a central catalog.

The Catalog is a central place to manage flows and track execution history. It registers data tables (physical and virtual), queries data with SQL, shares artifacts across flows, automates pipelines with schedules, and serves flows as API endpoints.

Limited in Flowfile Lite

The browser-only Flowfile Lite edition includes only a lightweight in-browser catalog (save and reuse CSV tables). The governed catalog described here — Delta-backed storage, version history, virtual tables, lineage, SQL, schedules, and secrets — requires the full desktop/server build.

Catalog overview

The Catalog page with namespace tree, tabs, and dashboard statistics

Opening the Catalog

Click the Catalog icon in the left sidebar menu to open the Catalog page.

Start with a populated catalog

A fresh install starts with an empty catalog (only the General > default namespace). To explore the catalog with real content, seed the optional Demo catalog from the command line:

flowfile seed-demo

This one command:

  • Creates a Demo catalog with two schemas — sales_analytics and market
  • Writes four Delta tables under Demo > sales_analytics — regions, products, customers, and sales
  • Registers a Sales by Region flow (under sales_analytics) and runs it once so its output table is populated
  • Registers a Daily FX Sync flow (under market), schedules it with a 0 6 * * * cron, and triggers an immediate first run

seed-demo is idempotent — running it again skips tables and flows that already exist. To remove everything under the Demo catalog (tables, flows, schedules, and namespaces) in one call:

flowfile remove-demo

Demo flows are the source of truth

The seeded flows are imported from bundled YAML. Edit those flows in the designer and re-run them — they persist like any other registered flow until you run flowfile remove-demo.

Dashboard

When no item is selected, the Catalog shows an overview dashboard with key metrics and quick-access panels.

Metric Description
Registered Flows Flows tracked in the catalog
Total Runs Number of flow executions recorded
Tables Catalog tables (physical + virtual)
Virtual Tables Virtual flow tables that resolve on demand
Favorites Your bookmarked flows and tables
Artifacts Global artifacts published by flows
Schedules Configured schedules for automated flow execution

The dashboard also shows recent runs, favorite flows, and favorite tables for quick navigation.

Dashboard stats

Dashboard showing overview metrics

Namespaces

Namespaces organize your catalog into a two-level hierarchy:

  • Catalog (level 0) — Top-level container (e.g., production, development)
  • Schema (level 1) — Sub-container within a catalog (e.g., sales, analytics)

Flows, tables, and artifacts are always registered under a schema.

Creating a Namespace

  1. Click the + button next to "Catalog" in the tree sidebar
  2. Choose whether to create a Catalog (top-level) or Schema (under an existing catalog)
  3. Enter a name and optional description
  4. Click Create

A default catalog (General) and schema (default) are created automatically on first use.

Tabs

The Catalog view is split into tabs:

Tab Description
Catalog Browse the namespace tree with flows, tables, and artifacts
Favorites Your starred flows and tables for quick access
Run History Chronological list of all flow executions
Schedules Manage automated flow schedules — see Schedules
SQL Query catalog tables — see SQL Editor
Notebook Notebooks stored next to the data — see Notebooks
Visuals Charts and dashboards built on catalog tables — see Visualizations
APIs Publish flows as HTTP endpoints and manage their keys — see Serve flows as APIs

Registering Flows

Register a flow to enable run tracking, artifact lineage, catalog table production, and virtual tables.

  1. Navigate to the desired schema in the tree
  2. Click Register Flow
  3. Select the flow file (.yaml) from the file browser
  4. Enter a name and optional description
  5. Click Register

Register flow

Registering a flow file under a catalog schema

When a flow joins the catalog

A flow appears in the catalog when you save it into a schema — via the Save dialog's catalog tab, or Register Flow above. Simply opening a .yaml in the designer, or starting a flow from a template, leaves it out of the catalog: browsing is read-only.

Quick-created flows start as unregistered drafts — the file is written to the app's internal folder, but no catalog entry is made. A draft joins the catalog when you run it, or when you save it with Also register in catalog checked. Registering is what unlocks run history, schedules and API publishing.

Accumulated entries under Unnamed Flows or Python Editor can be cleared in one go: hover the schema in the catalog tree and use the broom action. Flows with published artifacts are kept.

Flow Detail Panel

Click a registered flow to see its detail panel:

  • Name (editable inline) and description
  • Metrics: total runs, success rate, last run time, artifact count
  • Actions: Open in Designer, Run Flow, Cancel Run, Favorite, Delete
  • Recent Runs table with status, duration, and trigger type
  • Schedules section — manage schedules for this flow (see Schedules)
  • Produced Artifacts list

Flow detail

Flow detail panel showing metrics, recent runs, and actions

Missing Flow File

If the flow's .yaml file has been moved or deleted, a warning banner appears. The flow metadata and run history are preserved, but the flow cannot be opened in the designer.

Run History

Every execution of a registered flow is recorded with:

Field Description
Status Success or failure (with error details)
Started / Ended Timestamps
Duration Execution time in seconds
Nodes Completed Progress (completed / total)
Run Type How the flow was triggered (manual, scheduled, table trigger)
Flow Snapshot YAML snapshot of the flow version at run time

Run Detail Panel

Click a run to see its full detail:

  • Status badge and metadata
  • Node Results table: each node's status, duration, and error messages
  • Flow Snapshot: the exact flow version that was executed
  • Open Snapshot in Designer button to recreate the flow as it was

Run detail

Run detail showing node results and snapshot

Catalog Tables

Register data tables in the catalog for reuse across flows. Catalog tables come in two types:

Type Description
Physical Data materialized as a Delta table on disk — fast reads, version history, full schema preservation
Virtual No data on disk — executes a producer flow on demand to produce results. See Virtual Flow Tables

Recommended: Register tables via a flow

Use a Catalog Writer node in your flow: it supports more source types, ensures correct data interpretation, and enables lineage tracking.

Registering a Physical Table

  1. Navigate to a schema in the tree
  2. Click Register Table
  3. Select a Parquet file (.parquet)
  4. Enter a name
  5. Click Register

The file is materialized as a Delta table and registered with full metadata.

Register table

Registering a new catalog table from a data file

Creating a Virtual Table

Virtual tables can be created in two ways: via a Catalog Writer node in virtual mode (flow-based), or via Save as Virtual Table in the SQL Editor (query-based). See Virtual Flow Tables for the full guide.

Table Detail Panel

Click a table to view:

  • Metadata: name, namespace, row count, column count, file size, creation date
  • Schema: column names and data types
  • Data Preview: scrollable preview of the first 100 rows
  • Lineage: source flow, producing flow, and consumer flows (see Lineage)
  • Favorite toggle (star icon) to bookmark the table
  • Delete button with confirmation

For virtual tables, the detail panel also shows:

  • Table type: "virtual" badge
  • Producer flow: the registered flow that produces this table
  • Optimization status: whether the table uses optimized or standard resolution
  • Laziness blockers: if not optimized, which nodes prevent lazy execution

Table detail

Table detail panel showing schema and data preview

Using Catalog Tables in Flows

Use the Catalog Reader input node to read a catalog table (physical or virtual) and the Catalog Writer output node to write results back. See Input Nodes and Output Nodes.

Lineage

The catalog tracks full data lineage — which flows produce and consume each table:

Relationship Description
Source flow The registered flow (and specific run) that created or last wrote to the table
Producer flow For virtual tables: the flow that produces data on demand
Consumer flows Flows that read from this table via Catalog Reader nodes

This lineage graph drives automation: when a table is updated, any table trigger schedule watching it fires automatically, creating reactive data pipelines.

How Storage Works

Physical Tables — Delta Format

When you register a table or write via a Catalog Writer node, the data is materialized as a Delta table. Delta provides:

  • Version history — every write creates a new version, enabling time-travel queries
  • Schema evolution — columns can be added or modified across versions
  • ACID transactions — writes are atomic and consistent
  • Efficient storage — columnar Parquet files with metadata tracking

Materialization process:

  1. The source data is processed by the worker service using Polars
  2. The data is written as a Delta table to the catalog storage directory
  3. Metadata is extracted: row count, column count, file size, and column schema (names + Polars data types)
  4. A database record links the table name, namespace, and file path

Storage location: the directory is resolved by FLOWFILE_USER_DATA_DIR (or ~/.flowfile locally).

Environment Path
Desktop / local ~/.flowfile/catalog_tables/
Docker (code default) /data/user/catalog_tables/
Docker (shipped docker-compose.yml) /app/user_data/catalog_tables/ — the compose file sets FLOWFILE_USER_DATA_DIR=/app/user_data

File naming: Each Delta table directory is named {table_name}_{uuid} (e.g., sales_data_a3f1b2c4/). The UUID suffix ensures uniqueness even when multiple tables share similar names.

Flat storage

Namespaces (catalogs and schemas) are a logical hierarchy stored in the database — not filesystem directories. All Delta table directories live in a single flat storage directory. Table name uniqueness is enforced per namespace, so two schemas can each have a table called customers without conflict.

SCD2-tracked tables are Delta tables like any other, plus four generated columns holding the row-level version history: sk (surrogate key), valid_from, valid_to, and is_current. See Slowly Changing Dimensions for what each column means and how history is written and read.

Vacuum reaps Delta versions, never SCD2 rows

Delta table version history (above) and SCD2 row version history are unrelated mechanisms. vacuum removes old Delta commit versions no longer needed for time travel, but every row an SCD2 write has ever inserted stays in the table's current data — vacuum never removes an SCD2 row version, because each one is live data, not a superseded table snapshot.

Virtual Tables — No Storage

Virtual tables store no data on disk. The catalog entry holds only metadata (name, schema, producer flow reference) and, for optimized tables, a serialized Polars LazyFrame. See Virtual Flow Tables for details.

Delta Table History

Physical catalog tables stored in Delta format maintain a full version history. You can browse historical versions and preview data at any point in time.

Viewing History

In the table detail panel, the History section shows:

  • Current version number
  • Version list with timestamps, operation types, and metadata
  • Preview at version — select any historical version to see the data as it was at that point

Delta versioning is only available for physical tables

Virtual tables have no physical storage and therefore no version history. If you need historical snapshots, use a physical table.

SQL Editor

Query catalog tables directly using SQL. See the dedicated SQL Editor page for full documentation, examples, and the Save as Flow feature.

Notebooks

Notebooks live in the catalog next to the tables they analyze: Python and Markdown cells with code completions, Python executing on Docker-isolated kernels, cells reading and writing catalog tables directly through flowfile_ctx. See the dedicated Notebooks page.

Serve flows as APIs

Publish a registered flow as an HTTP endpoint so other systems can run it on demand. A published flow is served at GET /api/data/{slug}, which runs the flow synchronously and returns the output of its API response node as JSON.

  • The flow must contain exactly one API response node — it marks the dataset returned to the caller.
  • Endpoints are API-key authenticated. Keys belong to an API consumer — a client account that can be granted several published flows, so one key can call all of them. Publishing and key management live in the catalog's APIs tab.
  • Flow parameters surface as request parameters, so a single published flow can serve many variations.

The flow you build and test in the designer becomes a data service other systems can call — a dashboard, a scheduled job, another application.

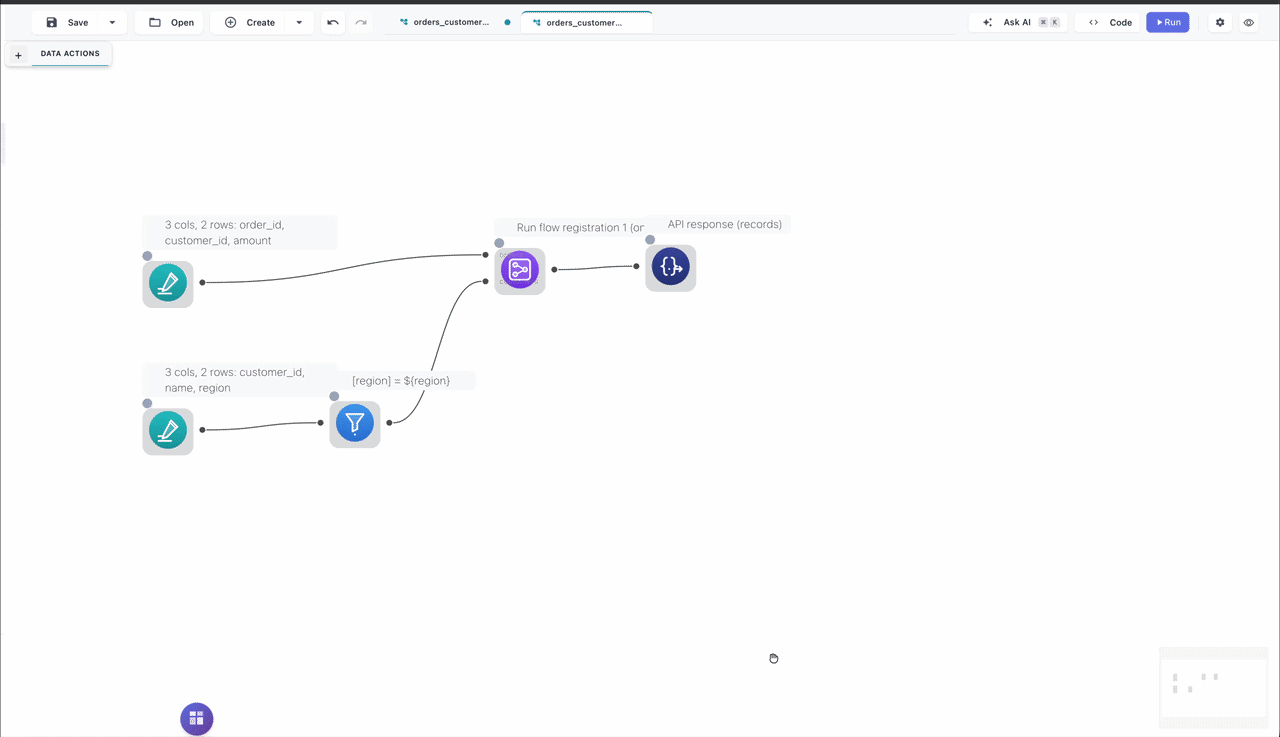

Setting up a flow to serve as an API: declaring the flow parameters, filtering by them in the flow, then configuring the API response node.

Once published, the flow's detail panel shows the Expose as API section: the live endpoint URL, the query parameters inherited from the flow's parameters, API-key management, and a Try it runner that calls the endpoint with your own values.

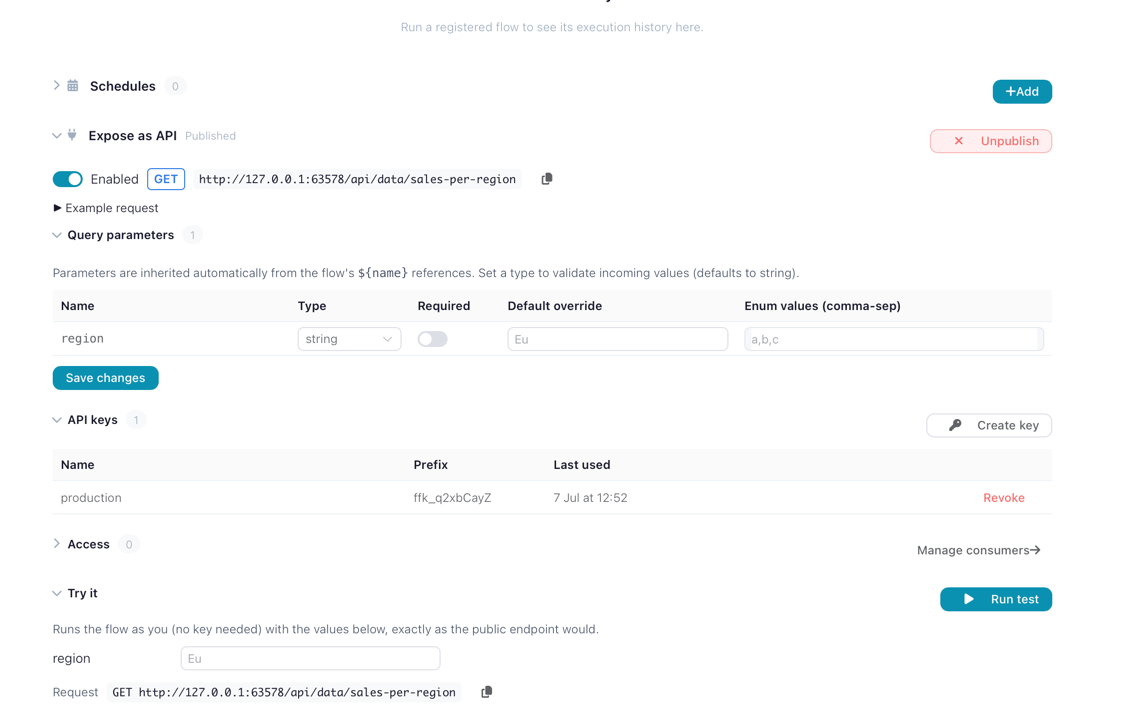

The Expose as API panel of a published flow: the enabled GET endpoint URL, a query-parameters table inherited from the flow parameters, API keys with create and revoke actions, and a Try it section that runs the endpoint with test values.

Favorites

Favorite a flow or table (star icon) to bookmark it in the Favorites tab for quick access. Favorites are per-user and can be toggled from detail panels or inline in the tree.

Global Artifacts

Global artifacts are Python objects (ML models, DataFrames, configs) persisted in the catalog and accessible from any flow. They are published from Kernel code using flowfile_ctx.publish_global().

Click an artifact in the tree to view its versions, metadata, and producing flow. Each publish adds a version; the tree shows one row per artifact (with a version count when there is more than one), and the detail panel pages through the full version list (25 at a time).

Version management (available to the artifact's owner and anyone with a manage grant):

Action Effect
Restore Copies an older version forward as a new highest version, so it becomes what "latest" resolves to. History stays append-only — nothing is overwritten. Not offered on the latest version.
Delete version Permanently removes that version and its stored data. The latest version is protected; delete the artifact itself to remove it entirely.
Prune versions Keeps the newest N versions (always including the latest) and deletes the rest. Preview first — the dialog reports how many versions and how much space the prune would free before you commit.

Deletes are permanent

Version deletes and prunes remove the stored object immediately. There is no trash window or undo.
