Combine Operations
Most of these bring separate datasets together — by matching values, stacking rows, or finding near-matches. The category also holds the actions that work on relationships within one table, and the ones that control which branches of a flow run at all, so a few take a single input rather than two.
| Action | What it does | Lite |
|---|---|---|
| Join | Match rows from two datasets on shared key columns | ● |
| Fuzzy match | Match rows on values that are similar but not identical | |
| Union data | Stack datasets on top of each other | ● |
| Cross join | Every combination of rows from two datasets | ● |
| Graph solver | Group records that are connected to each other — one input | |
| Explode hierarchy | Expand a bill of materials or chart of accounts to every level — one input | |
| Gate | Run a branch only when a condition holds | |
| Wait For | Hold a branch until another branch finishes | |
| Run Flow | Execute another flow as a single step |
In Flowfile Lite
The browser-only Flowfile Lite build supports Join, Cross join and Union data. The rest need the full desktop or server build.
Join
Matches rows from two inputs on one or more shared key columns — the spreadsheet VLOOKUP, without the lookup breaking when rows move. Connect the left and right datasets, pick the join type, choose the key columns, and select which columns to keep from each side. Duplicate column names are renamed automatically.
Settings
| Setting | Description |
|---|---|
| Join Type | How unmatched rows are treated. See the table below. |
| Join Columns | The column pairs matched against each other. |
| Left data / Right data | The column list for each input. Untick Keep to drop a column, type a New column name to rename it, and drag rows to set the output order. Hidden for semi and anti joins. |
| Type | Result |
|---|---|
inner |
Only rows with a match in both inputs. |
left |
Every left row; matched right columns, nulls where there is no match. |
right |
Every right row; matched left columns, nulls where there is no match. |
full |
Every row from both inputs, matched where possible. |
semi |
Left rows that have a match on the right — right columns are not added. |
anti |
Left rows that have no match on the right. |
Semi and anti joins pass all left-side columns through unchanged. outer is accepted as an alias for full.
For a Cartesian product with no keys at all, use the dedicated Cross join action — the Join node's strategies all require key columns.
Fuzzy match
Matches rows on values that are close rather than identical, which is what you need when the same customer is "Acme Corp" in one system and "ACME Corporation" in another. Each match carries a score, so you can see how confident it was.
Settings
| Setting | Description |
|---|---|
| Join Columns | The column pairs compared against each other. |
| Fuzzy Algorithm | One of levenshtein, jaro, jaro_winkler, hamming, damerau_levenshtein or indel. |
| Threshold Score | Minimum similarity for a match, 0–100. Default 80. |
| Left data / Right data | The column list for each input. Untick Keep to drop a column, type a New column name to rename it, and drag rows to set the output order. |
Fuzzy matching compares candidate pairs rather than looking keys up directly, so it is far more expensive than a Join. Cut both inputs down first — filter to the rows that need matching, and join exactly the ones that match cleanly.
Union data
Stacks datasets on top of each other, aligning columns by name. Columns that exist in only some inputs are kept and filled with nulls elsewhere, so inputs do not have to share an identical schema. It has no settings — connect the inputs and it aligns them.
Union is also where conditional branches re-converge: it runs as long as at least one input survived, so a branch that was gated off simply contributes nothing. A branch that failed, on the other hand, still blocks it.
Cross join
Produces every combination of rows from two inputs — the Cartesian product. Ten rows joined to five gives fifty.
Settings
| Setting | Description |
|---|---|
| Left data / Right data | The column list for each input. Untick Keep to drop a column, type a New column name to rename it, and drag rows to set the output order. |
Both lists arrive pre-filled with every incoming column, all kept. Renaming matters here because the two sides often share column names.
Output size is the product of the inputs, so this grows fast. It is the right action for building a complete grid (every product against every month, say) and the wrong one for matching records.
Graph solver
Unlike the rest of this category, Graph solver takes a single input: one table of pairwise connections, where each row is an edge. It assigns a shared group identifier to everything transitively connected — the connected components of a graph. If A links to B and B links to C, all three land in one group even though A and C never appear together.
Settings
| Setting | Description |
|---|---|
| From Column | The starting point of each connection. |
| To Column | The endpoint of each connection. |
| Output Column | Where the assigned group identifier is written. |
This is the action behind entity resolution: after a Fuzzy match produces pairs of records that look like the same thing, Graph solver collapses those pairs into one group per real-world entity.
Explode hierarchy
Takes a single input: a parent → child table in which each row says one item contains another. A bill of materials (assembly → component, with a quantity), a chart of accounts (parent account → account), a work breakdown structure and an org chart all have this shape. The node links every item to everything below it, at any depth, and multiplies quantities along the way. In SQL this is a WITH RECURSIVE query, or CONNECT BY in Oracle.
The result is a new table with fixed columns. The input's other columns are not carried through; Join them back on ancestor or descendant when you need them.
Settings
| Setting | Description |
|---|---|
| Parent column | The item that contains the child: the assembly, the parent account. |
| Child column | The item it contains: the component, the sub-account. Must be a different column from the parent. |
| Quantity column | Optional. How many of the child one parent holds. Leave it empty and every edge counts 1. |
| Output | Totals (the default), Levels or Paths. See the table below. |
| Top-level items only | Off by default, which explodes every item that has children, so subassemblies get rows of their own. On, only items that never appear as a child are exploded: the finished products, the top accounts. |
| Include each item itself | Off by default. Adds a level-0 row from each item to itself with quantity 1: for every item in the table, or only the top-level ones when Top-level items only is on. |
| Max depth | Optional. Stop after this many levels; 1 keeps direct children only. Empty explodes every level. |
| Output | One row per | Columns |
|---|---|---|
| Totals | ancestor and descendant | ancestor, descendant, level, quantity, is_leaf |
| Levels | ancestor, descendant and level | The same as Totals. |
| Paths | route from ancestor to descendant, depth-first | ancestor, descendant, level, parent, quantity_per, quantity, is_leaf, path |
| Column | Meaning |
|---|---|
ancestor |
The item being exploded. |
descendant |
An item below it. |
level |
How many steps down, 1 being a direct child. Totals gives the shallowest level the descendant occurs at, Levels the level the row counts, and Paths the length of the route. |
quantity |
Totals: how many of the descendant one ancestor holds, over every route. Levels: the same, over the routes of this length only. Paths: the quantities along this one route, multiplied. |
is_leaf |
The descendant has no children of its own anywhere in the input. |
parent |
Paths only: the descendant's direct parent on this route. |
quantity_per |
Paths only: the quantity on the last step of the route. |
path |
Paths only: every item on the route as a list, from the ancestor to the descendant. |
level is a whole number and both quantities are decimals. The item columns (ancestor, descendant, parent and the entries of path) keep the ids' type when the parent and child columns are both text or both integers, so integer account numbers stay integers. Two integer columns of different types are cast to one integer type that holds both, and 8- and 16-bit ids are widened to at least 32 bits. The one integer exception is UInt64 paired with a signed column, which no integer type holds, so it comes out as text like any other combination.
Example: how many screws go into a bike
Five lines of a bill of materials:
| assembly | component | qty |
|---|---|---|
| bike | frame | 1 |
| bike | wheel | 2 |
| bike | screw | 10 |
| frame | screw | 6 |
| wheel | screw | 2 |
With Parent column assembly, Child column component, Quantity column qty and Top-level items only on:
| ancestor | descendant | level | quantity | is_leaf |
|---|---|---|---|---|
| bike | frame | 1 | 1 | false |
| bike | wheel | 1 | 2 | false |
| bike | screw | 1 | 20 | true |
The bike needs 20 screws: 10 fitted to it directly, 6 in its frame and 2 in each of its 2 wheels. level is 1 because the shallowest screw sits directly on the bike.
| ancestor | descendant | level | quantity | is_leaf |
|---|---|---|---|---|
| bike | frame | 1 | 1 | false |
| bike | wheel | 1 | 2 | false |
| bike | screw | 1 | 10 | true |
| bike | screw | 2 | 10 | true |
The same 20 screws, split into the 10 fitted at final assembly and the 10 fitted inside subassemblies.
| ancestor | descendant | level | parent | quantity_per | quantity | path |
|---|---|---|---|---|---|---|
| bike | frame | 1 | bike | 1 | 1 | [bike, frame] |
| bike | screw | 2 | frame | 6 | 6 | [bike, frame, screw] |
| bike | wheel | 1 | bike | 2 | 2 | [bike, wheel] |
| bike | screw | 2 | wheel | 2 | 4 | [bike, wheel, screw] |
| bike | screw | 1 | bike | 10 | 10 | [bike, screw] |
One row per route, depth-first, which is the order of an indented bill of materials (is_leaf not shown). The three screw routes add up to the 20 in Totals.
With Top-level items only off, the frame and the wheel are exploded as well, which adds frame → screw (6) and wheel → screw (2) to each output.
How it counts
- Quantities multiply along a route and add up across routes. A component reached through several subassemblies, like the screws above, is summed in Totals and Levels and listed once per route in Paths.
- Duplicate edges. Two input rows with the same parent and child are added together in Totals and Levels, and stay separate routes in Paths.
is_leafdescribes the whole input, not the exploded result: a subassembly that Max depth cut off is stillfalse.- Level-0 rows from Include each item itself have an empty
parentandquantity_perin Paths. - Rows with an empty parent or child are skipped.
Common recipes
The exploded table is usually one or two nodes away from the answer. Examples are from the full bike factory BOM, which adds an e-bike with a battery and a motor, and wheels with rims and spokes.
- Purchase requirements. Totals with Top-level items only → Filter data
[is_leaf] = true→ Join the production plan onancestor= product → Formulaneeded=[quantity] * [units]→ Group bydescendantwith Sum ofneeded. A left join to the stock table and the formula[needed] - coalesce([on_hand], 0)then give what to buy. - Cost roll-up. Totals with the defaults → Filter
[is_leaf] = true→ Join the purchase prices ondescendant→ Formulacost=[quantity] * [price]→ Group byancestorwith Sum ofcost. Every subassembly gets a cost too, because every item with children is exploded. - Where-used. Totals → Filter
[descendant] = "spoke": every assembly that contains spokes and how many. For the bike factory that is the wheel (32), the bike (64) and the e-bike (64). - Low-level codes for MRP. Levels with Top-level items only and Include each item itself → Group by
descendantwith Max oflevel. Screws are fitted at level 1 and inside subassemblies at level 2, so their code is 2, which one total per pair cannot show. - Indented bill of materials. Paths with Top-level items only → Filter
[ancestor] = "bike". The rows are already in print order; indent each by itslevel. - General-ledger roll-up. A chart of accounts with no quantity column and Include each item itself on → Join the journal on
descendant= account → Group byancestorwith Sum of the amount. Each account's balance covers its own postings and every account below it.
Errors
| Error message contains | Cause |
|---|---|
the hierarchy contains a cycle, so its quantities are unbounded: a -> b -> c -> a |
An item contains itself, directly or through others. The message names the loop; a row whose parent and child are the same item reports as b -> b. |
`quantity` is null for the edge b -> c |
The quantity is empty on that row. Fill it in or filter the row out first. |
Neither can be detected from the settings or the schema, only by computing the rows. In Development mode the node fails with the message. In Performance mode the node's rows are only computed by what reads them, so the message appears on the first downstream node that reads the rows, such as a writer, or when you open its data preview; when more than one node reads them, the node computes them once itself and fails with the message. Quantities are converted to decimals first, so a text quantity column works as long as every value is a number; any other value fails the conversion.
Output size
Totals has at most one row per ancestor and descendant, and Levels one per ancestor, descendant and level. Paths has one row per route, and every place a shared subassembly is used repeats its whole subtree, so a deep hierarchy with widely shared parts can produce many more rows than it has lines. Top-level items only and Max depth keep it down.
From Python, the same node is explode_hierarchy().
Gate
Decides whether a branch runs at all. The data input passes through unchanged while the condition holds. When it does not hold, the gate itself still succeeds — but every node downstream is skipped, not failed. The run stays green, progress still reaches its total, and sources upstream of the gate still finish their post-run work (a Kafka Source commits its offsets as usual).
Where Filter data decides which rows continue, Gate decides whether the rest of the branch executes.
Settings
| Setting | Description |
|---|---|
| Condition source | Flow parameter (the default) compares a parameter against a value; Formula evaluates a row predicate. |
| Parameter / Operator / Value | Shown for a flow-parameter condition. The value is coerced to the parameter's declared type. |
| Formula | Shown for a formula condition. The gate opens when at least one row matches. |
| Add an else output | Off by default. Adds a second exit that runs when the condition does not hold. |
Inputs and outputs
| Handle | Purpose |
|---|---|
| Data (passes through) | The dataset the gate forwards. Required, on the left edge. |
| Control (optional) | The small square pip at the bottom of the node — a signal, not data. Read only when the condition source is Formula; when connected, the formula is checked against this input instead of the data input. |
Then (T) |
The data, live while the condition holds. The only output unless the else output is enabled. |
Else (E, optional) |
Enable Add an else output in the settings: the data leaves here when the condition does not hold. Exactly one of the two sides runs per execution; the other side's downstream is skipped. |

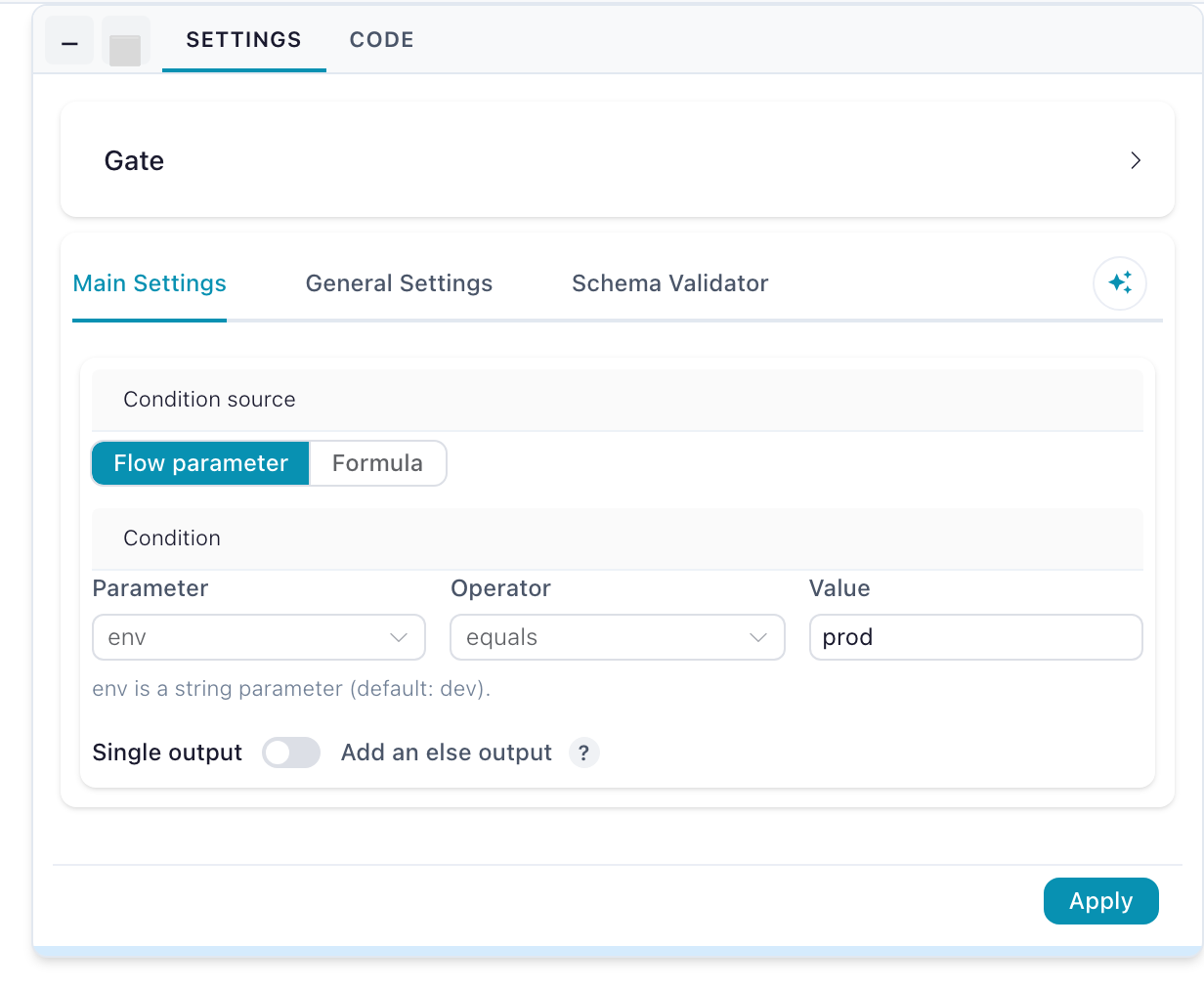

Condition source: flow parameter
The default. Pick a flow parameter (defined in Flow settings), an operator, and — for the comparing operators — a value. The value you type is coerced using the parameter's declared type, so an integer parameter compares as a number, not as text.
Parameter conditions resolve before the run starts, so the execution plan already knows which branches are live.

| Operator | Gate opens when |
|---|---|
| equals | The parameter's value equals the value you typed. |
| not equals | It does not equal that value. |
| is one of | It appears in the comma-separated list you typed. |
| is not one of | It does not appear in that list. |
| is true | It reads as boolean true (true, 1, yes, on). |
| is false | It does not read as true. |
| is set | It is not empty. |
Overriding the parameter is what flips the gate — including on a headless run: flowfile run flow my_flow.yaml --param env=prod.
Condition source: formula
Write a flowfile formula — the same expression language as Filter data's advanced mode. The gate applies it as a row predicate and opens when at least one row matches. An empty result closes the gate: no matching rows means don't run the branch. A formula that cannot run (a typo, an unknown column) fails the gate visibly rather than silently picking a branch, and ${param} references resolve inside the formula like in any other node — ${env} = 'prod' compares the parameter's value against the literal.
The formula is checked against the control input when one is connected, otherwise against the data input itself:
- Gate on the data: leave the control handle unconnected and write the condition over the data's own columns —
[status] = 'error'runs the branch only when error rows exist. - Gate on a signal: wire any node to the control handle and the formula reads that frame instead — a Group by producing
null_ratefeeding the control handle with formula[null_rate] < 0.05gates the write on a quality verdict computed elsewhere.
A formula gate re-evaluates on every run even when nothing else in the flow changed, because the data it checks can change without any setting changing.
The if/else pattern
Enable Add an else output and the gate becomes a two-exit router: one condition, two branches, complementarity guaranteed. Put each branch behind one exit and re-converge them on a Union data:
graph LR
R[Read data] --> G["Gate: env equals prod"]
G -- "T (then)" --> P[Enrich for prod]
G -- "E (else)" --> D[Sample for dev]
P --> U[Union data]
D --> U
U --> W[Write data]
Exactly one side runs, and the Union outputs whichever branch ran.
When the two branches produce different columns
A column produced only by the skipped branch is absent from the output — it does not come back as nulls. So when the two branches produce different shapes, configure the nodes downstream of the Union against the columns the branches share, or end each branch with a Select data that establishes a common shape (keep the missing columns) before the Union.
Edit-time schema prediction is gate-blind: the canvas predicts the union of both branches' columns, so a run's actual output can be narrower than the predicted schema.
Two separate gates with hand-written complementary conditions still work, but the else output cannot drift out of complement.

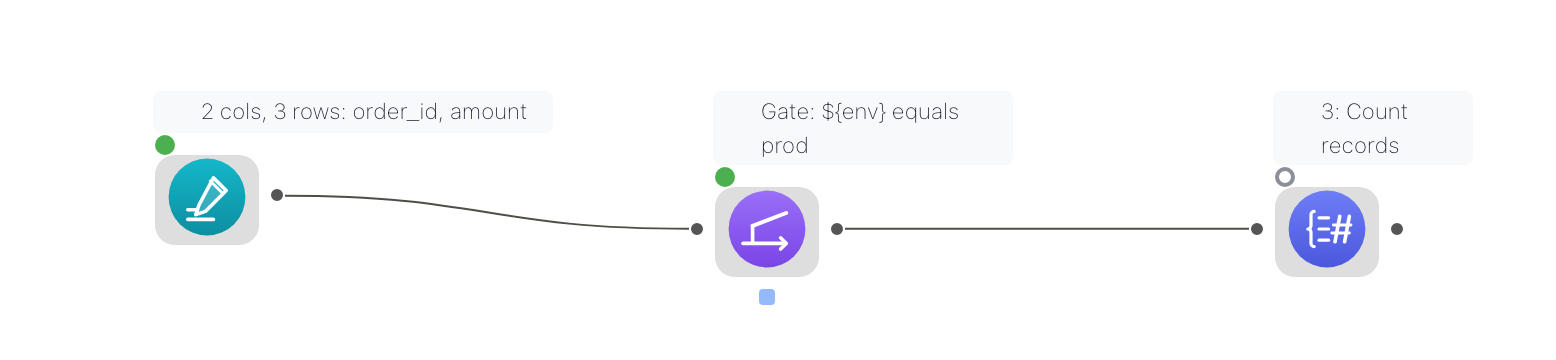

Skipped is not failed — what a closed gate looks like on the canvas

A deliberately skipped node shows a hollow grey ring on the canvas ("Skipped (gated off) — condition not met") and appears as Skipped in the run report with no runtime. It is a successful outcome: the flow's overall status stays green and the completed-node count still reaches its total.
Skips caused by a failure or by invalid settings are unchanged — they still block everything downstream, including a Union that has other healthy inputs.
A closed gate does not stop the upstream
A gate only prevents its downstream from running. Everything between the source and the gate still executes, so an expensive read placed above a gate is paid for even when the branch is off. Put the gate as early in the branch as the condition allows.
Export to Python — gates in the generated code
In the Polars code export each gate becomes a real if block over the generated function's keyword arguments; the FlowFrame and Project exports place it as ff.Gate(...) and read its exits as .then / .otherwise. An else-output gate exports as a genuine if/else pair, and the Union re-converging its two sides collapses to a conditional assignment — whichever side ran is the result. A Union behind independent gates instead appends each surviving branch to a list under its own if guard and concatenates the list, so a gated-off branch simply isn't in it. A formula gate exports as a small row-probe helper evaluated when the pipeline function runs.
Single-node preview ignores gates entirely — fetching one node's data plans as if every gate were open, so you can inspect a branch that this run's condition would skip.
Wait For
A pass-through with two inputs: the left input flows through unchanged, and the right input only enforces ordering. Once both have finished, the node emits the left input's data on its single output. There are no settings — wire the data branch into the left input and the dependency branch into the right.
Use it when a downstream node depends on a side effect of a sibling branch rather than on its data. The common case is an Apply Model whose Model source is From catalog, after a Train Model that saves its model to the catalog: Wait For makes the training finish before the model is read.
Run Flow
Executes another, catalog-registered flow inside this one — the calling side of a subflow. Its input and output handles are shaped by the child flow's Flow Input and Flow Output nodes.
Settings
| Setting | Description |
|---|---|
| Flow | The catalog-registered child flow to run. |
| Parameter bindings | Default, constant, or column-mapped value per child parameter. |
| Iteration mode | Run once with the first row's values, or once per row (capped at 1000). |
Subflows covers registration, wiring and error handling.
