Catalog

Organize, track, and govern your data flows and tables in a central catalog.

The Catalog provides a namespace hierarchy for managing flows, tracking run history, registering data tables, and sharing artifacts across flows.

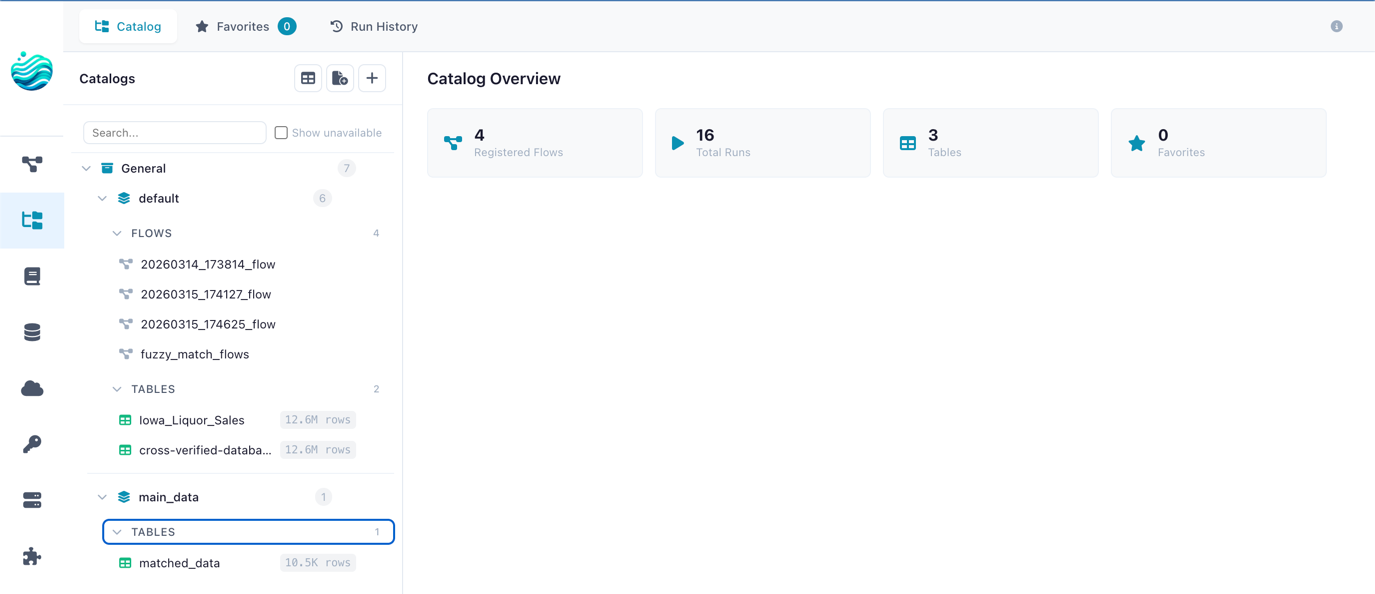

Catalog overview

The Catalog page with namespace tree, tabs, and dashboard statistics

Opening the Catalog

Click the Catalog icon in the left sidebar menu to open the Catalog page.

Dashboard

When no item is selected, the Catalog shows an overview dashboard with:

Metric Description
Registered Flows Flows tracked in the catalog
Total Runs Number of flow executions recorded
Tables Materialized data tables
Favorites Your bookmarked flows

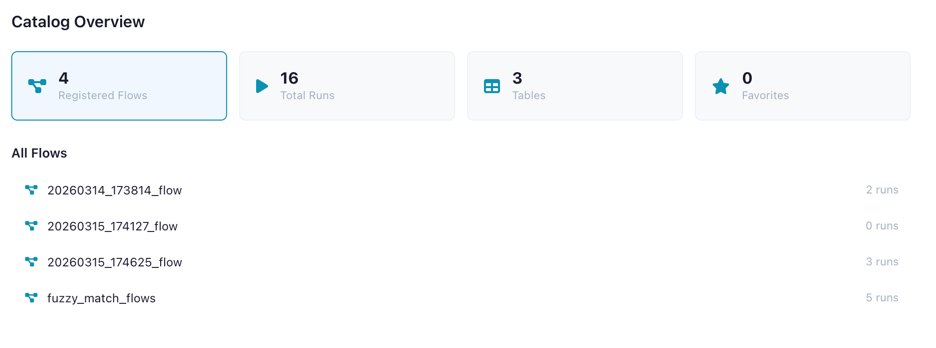

Dashboard stats

Dashboard showing overview metrics

Namespaces

Namespaces organize your catalog into a two-level hierarchy:

  • Catalog (level 0) — Top-level container (e.g., production, development)
  • Schema (level 1) — Sub-container within a catalog (e.g., sales, analytics)

Flows, tables, and artifacts are always registered under a schema.

Creating a Namespace

  1. Click the + button next to "Catalog" in the tree sidebar
  2. Choose whether to create a Catalog (top-level) or Schema (under an existing catalog)
  3. Enter a name and optional description
  4. Click Create

A default catalog and schema are created automatically on first use.

Tabs

The sidebar offers four tabs:

Tab Description
Catalog Browse the namespace tree with flows, tables, and artifacts
Favorites Your starred flows for quick access
Run History Chronological list of all flow executions

Registering Flows

Register a flow to enable run tracking, artifact lineage, and catalog table production.

  1. Navigate to the desired schema in the tree
  2. Click Register Flow
  3. Select the flow file (.yaml) from the file browser
  4. Enter a name and optional description
  5. Click Register

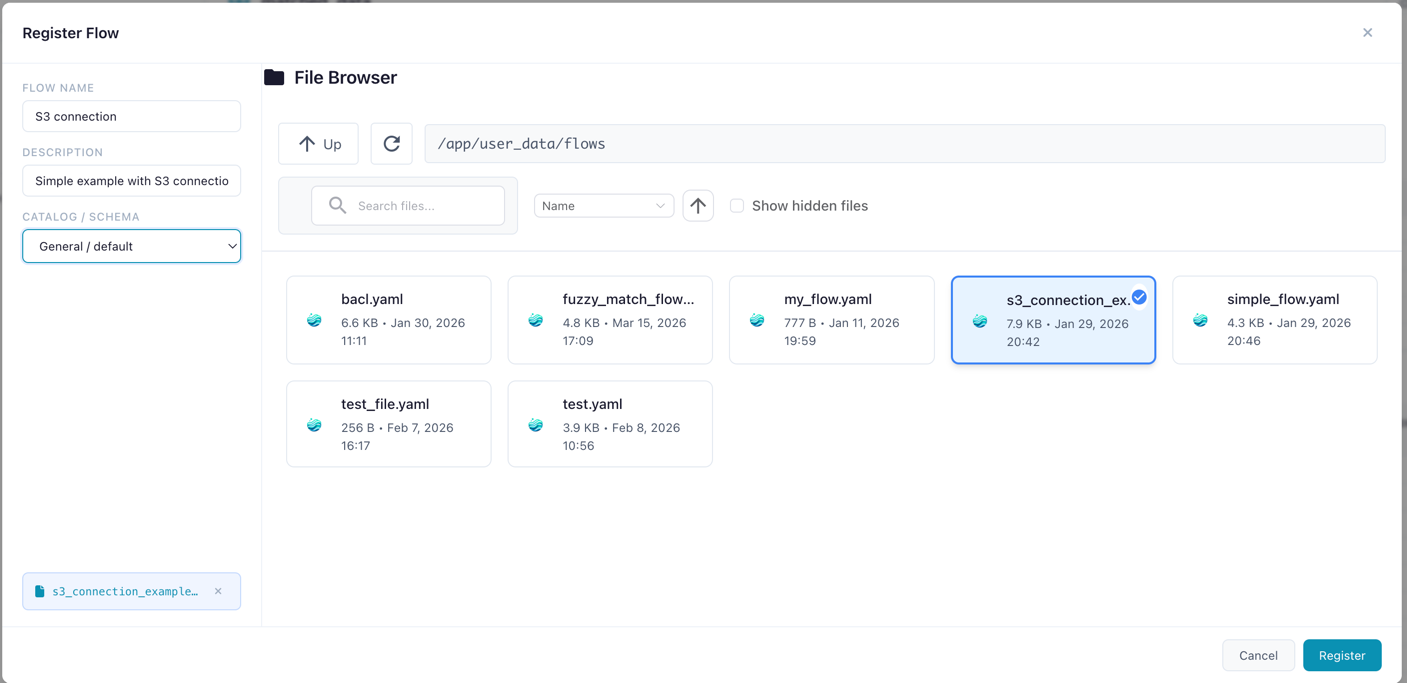

Register flow

Registering a flow file under a catalog schema

Flow Detail Panel

Click a registered flow to see its detail panel:

  • Name (editable inline) and description
  • Metrics: total runs, success rate, last run time, artifact count
  • Actions: Open in Designer, Favorite, Delete
  • Recent Runs table with status and duration
  • Produced Artifacts list

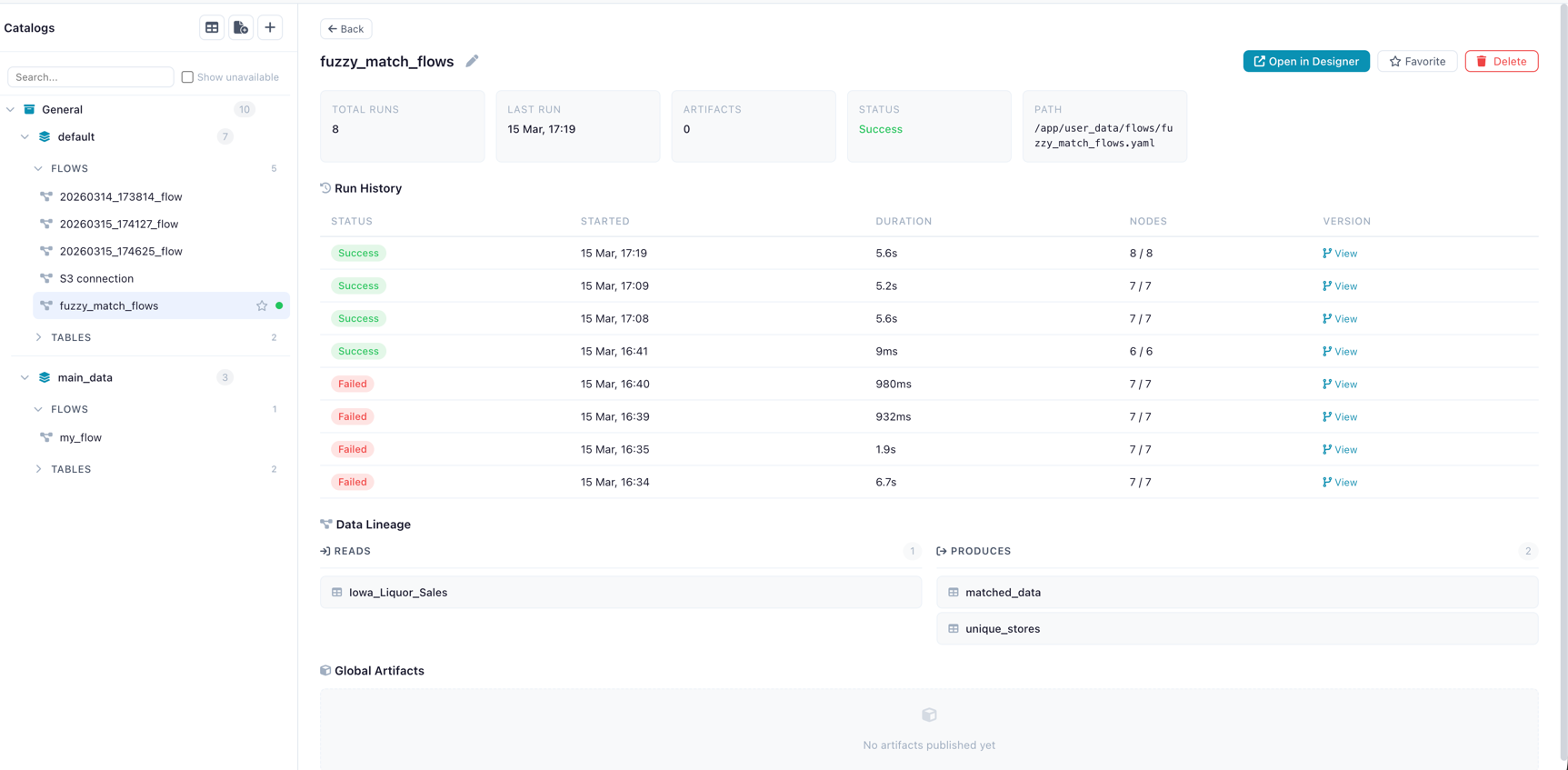

Flow detail

Flow detail panel showing metrics, recent runs, and actions

Missing Flow File

If the flow's .yaml file has been moved or deleted, a warning banner appears. The flow metadata and run history are preserved, but the flow cannot be opened in the designer.

Run History

Every execution of a registered flow is recorded with:

Field Description
Status Success or failure (with error details)
Started / Ended Timestamps
Duration Execution time in seconds
Nodes Completed Progress (completed / total)
Run Type How the flow was triggered
Flow Snapshot YAML snapshot of the flow version at run time

Run Detail Panel

Click a run to see its full detail:

  • Status badge and metadata
  • Node Results table: each node's status, duration, and error messages
  • Flow Snapshot: the exact flow version that was executed
  • Open Snapshot in Designer button to recreate the flow as it was

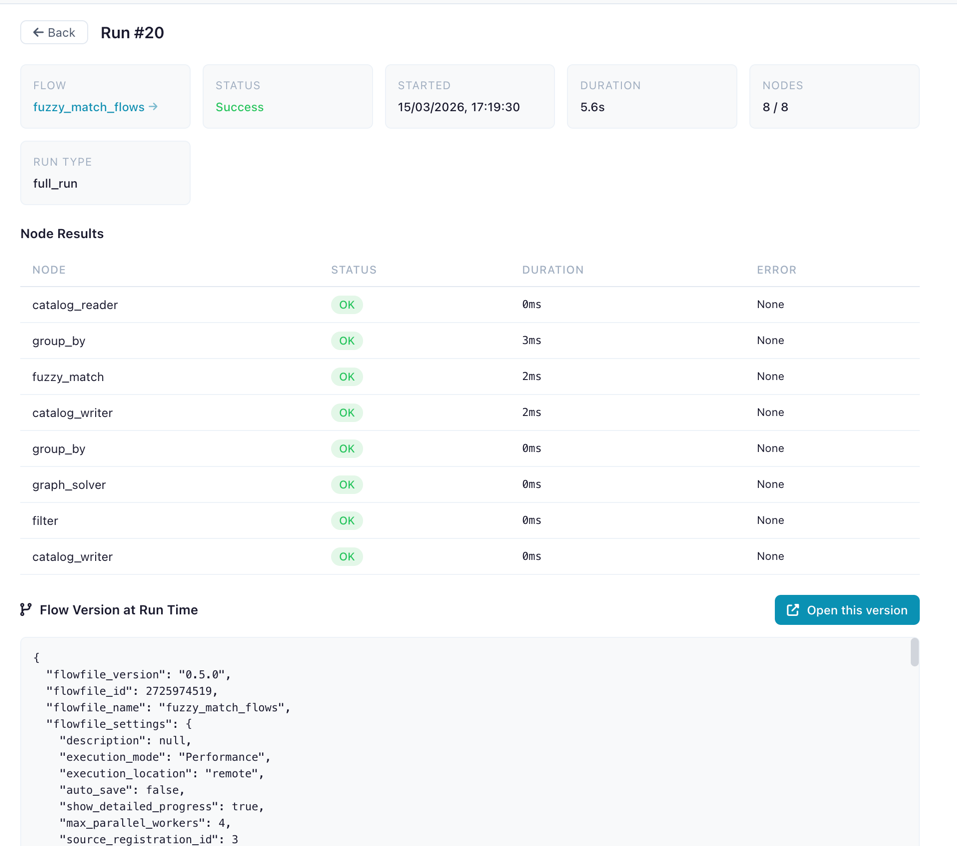

Run detail

Run detail showing node results and snapshot

Catalog Tables

Register materialized data tables in the catalog for reuse across flows.

Recommended: Register tables via a flow

It is recommended to register tables via a flow, as it supports more source types and ensures the table is interpreted exactly how you want it.

Registering a Table

  1. Navigate to a schema in the tree
  2. Click Register Table
  3. Select a Parquet file (.parquet)
  4. Enter a name
  5. Click Register

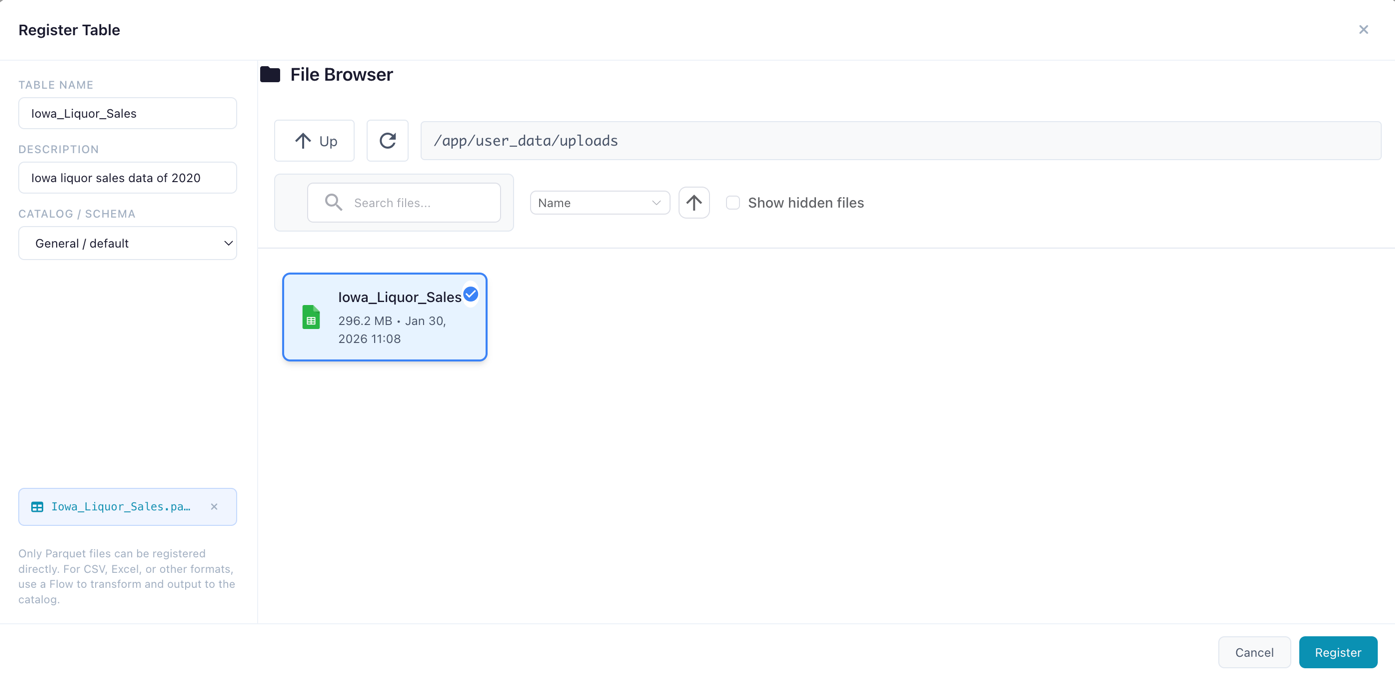

Register table

Registering a new catalog table from a data file

Table Detail Panel

Click a table to view:

  • Metadata: name, namespace, row count, column count, file size, creation date
  • Schema: column names and data types
  • Data Preview: scrollable preview of the first 100 rows
  • Delete button with confirmation

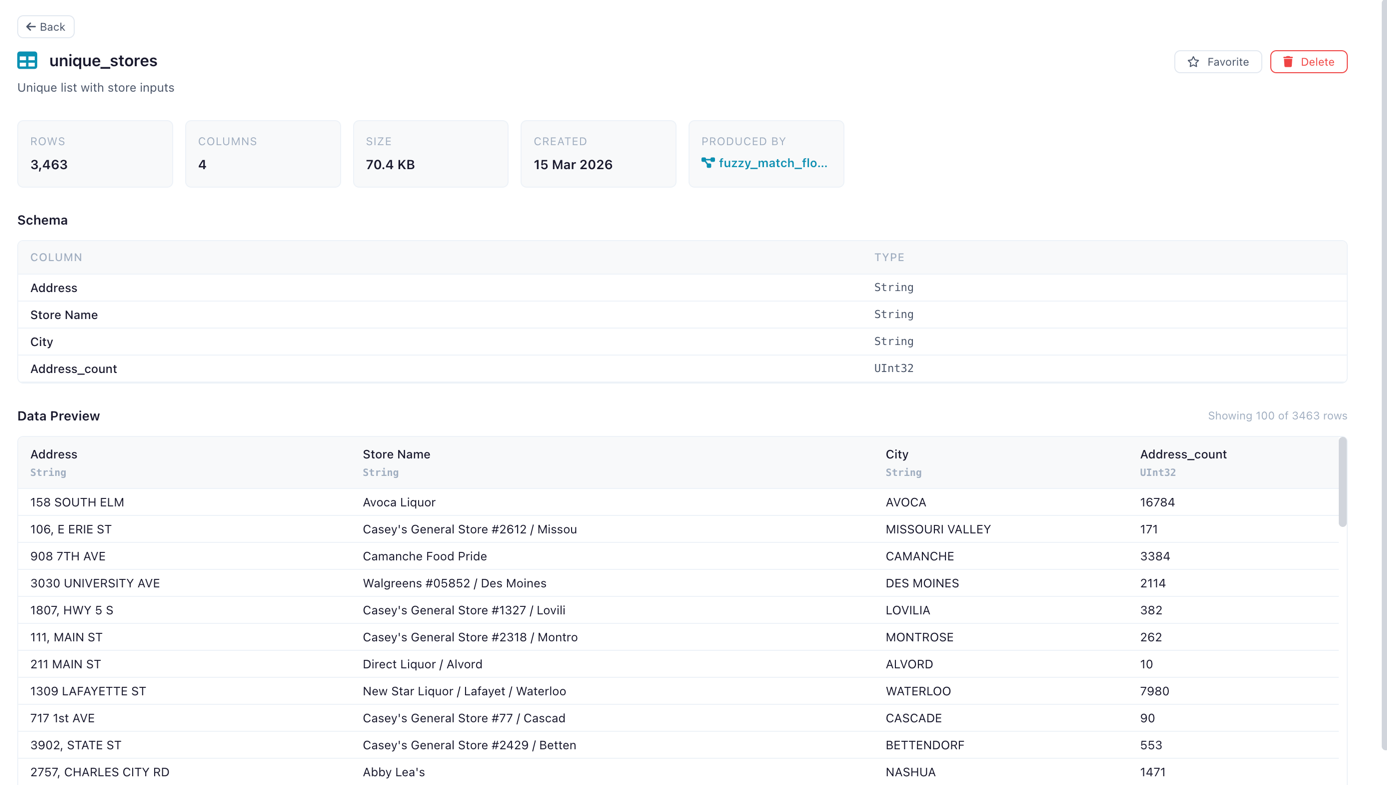

Table detail

Table detail panel showing schema and data preview

Using Catalog Tables in Flows

Use the Catalog Reader input node to read a catalog table and the Catalog Writer output node to write results back. See Input Nodes and Output Nodes.

Lineage

The catalog tracks which flows produce and consume each table:

  • Source: which registered flow and run created the table
  • Consumers: which flows read from the table via Catalog Reader nodes

How Storage Works

When you register a table — either by adding it directly in the catalog or by writing to it via a Catalog Writer node in a flow — it is stored as a Parquet file. This ensures consistent, efficient storage with full schema preservation.

Materialization process:

  1. The source file (CSV, TSV, TXT, Excel, or Parquet) is read by the worker service using Polars
  2. The data is written as a single Parquet file to the catalog storage directory
  3. Metadata is extracted from the materialized file: row count, column count, file size, and column schema (names + Polars data types)
  4. A database record is created linking the table name, namespace, and file path

Supported source format: Parquet (.parquet)

Storage location:

Environment Path
Desktop / local ~/.flowfile/catalog_tables/
Docker /data/user/catalog_tables/ (mapped via FLOWFILE_USER_DATA_DIR)

File naming: Each Parquet file is named {table_name}_{uuid}.parquet (e.g., sales_data_a3f1b2c4.parquet). The UUID suffix ensures uniqueness even when multiple tables share similar names.

Flat storage

Namespaces (catalogs and schemas) are a logical hierarchy stored in the database — not filesystem directories. All materialized Parquet files live in a single flat directory. Table name uniqueness is enforced per namespace, so two schemas can each have a table called customers without conflict.

Favorites

Favorite a flow (star icon) to bookmark it in the Favorites tab for quick access. Favorites are per-user and can be toggled from the flow detail panel or inline in the tree.

Global Artifacts

Global artifacts are Python objects (ML models, DataFrames, configs) persisted in the catalog and accessible from any flow. They are published from Kernel code using flowfile.publish_global().

Click an artifact in the tree to view its versions, metadata, and producing flow.
