Change Tracking

Change tracking lets a flow read only what changed in a Delta table instead of re-reading the whole table every run. It works on catalog tables and on Delta tables at a cloud storage path: turn it on for the table, point a reader at it in one of the Changes modes, and each run returns the inserts, updates and deletes committed in that window. This page covers how to turn it on, what the reader returns, the per-consumer cursor that catalog tables keep, how cloud paths differ, and the cases where tracking is refused or unsafe.

Underneath it is Delta Lake's change data feed: a table property that makes every write record its row-level changes alongside the data. Flowfile turns the property on, knows the version it was turned on at, and — for catalog tables — keeps a cursor per consumer.

Catalog tables and cloud paths

The change feed, the columns it adds and the enable-only rule are the same for both. What differs is what Flowfile can keep about a table the catalog does not manage:

Catalog table Delta table at a cloud path
Reader Read from Catalog Read from cloud provider, Delta Lake format
Writer Write to Catalog Write to cloud provider, Delta Lake format
Read modes Since last run, since version, since time Since version, since time
Cursor One per consumer, advanced after each full run None — a flow parameter moves the window
Tracking floor Recorded when tracking is turned on Read from the table's Delta log on every run
Storage Wherever the catalog keeps its tables S3 or Azure Data Lake Storage; not Google Cloud Storage

Turning it on

Tracking is off by default, per table, and enable-only — nothing in the UI turns it back off, because the changes a table stops recording cannot be recovered later. Every way of turning it on does the same thing:

  • The writer's Track changes checkbox, on Write to Catalog or Write to cloud provider. On a new table the property is set at creation; on an existing untracked table the writer enables it just before writing, so that write is the first tracked commit.
  • The Enable change tracking button in either reader's settings, shown when a change mode is picked on a table that is not tracked yet.
  • For a catalog table, the Change tracking card on the table's detail page in the catalog browser.

In Python, pass track_changes=True to write_catalog_table or SchemaReference.write_table for a catalog table, and to FlowFrame.write_delta or write_to_cloud_storage for a cloud path.

Only commits made after enabling are tracked

The version tracking was turned on at is the floor for every change read. History written before it cannot be replayed — the change feed for those versions is either missing or inconsistent, so a window that starts earlier is moved up to the floor. A catalog table records the floor when tracking is enabled; for a cloud path Flowfile reads it from the Delta log: the commit that turned tracking on or, for a table created tracked, its oldest version still in the log. Turn tracking on when you create the table, not when you first need a change feed.

Tracking is refused on virtual tables, legacy parquet tables and SCD2-tracked tables, and on gs:// paths. An SCD2 table already keeps row history in its valid_from / valid_to / is_current columns — read those instead.

Reading changes

Both readers show a Read selector:

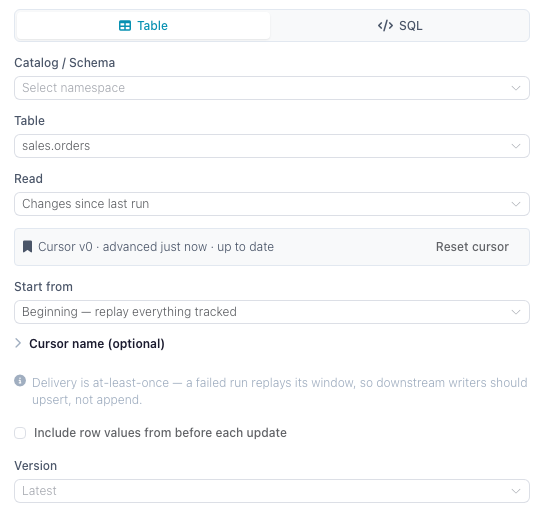

Catalog Reader set to "Changes since last run", showing the cursor status line and Reset cursor button

Option What the run returns
Full table (default) The table as it is now. No change feed.
Changes since last run Catalog tables only. Everything committed after the version this consumer last processed. Advances a cursor.
Changes since version Everything committed after the version you pick. No cursor — the same window every run.
Changes since time Everything committed at or after a timestamp (never below the tracking floor). No cursor.

Changes since version and Changes since time also accept a flow parameter (${name}, offered in the drawer when the flow defines one of the matching type), so a scheduled, CLI or API run can pass the starting point at run time.

Every change mode adds three columns to the table's own:

Column Meaning
_change_type insert, update_postimage, delete — plus update_preimage when preimages are included
_commit_version The Delta commit version the row change belongs to
_commit_timestamp When that commit landed

By default the reader drops update_preimage rows, so an updated row appears once, with its new values. Tick Include row values from before each update (include_change_preimage in Python) to get the before-image rows as well; pair them with _commit_version to see what a row looked like before and after the same commit.

A run whose window contains nothing returns an empty frame with the full schema, not an error — a scheduled flow that fires during a quiet hour simply processes zero rows.

Cursors

Only Changes since last run keeps a cursor, so cursors exist for catalog tables only. A cursor stores one number: the last Delta commit version that was fully processed. The next run reads from the version after it, up to the table's head at the moment the read starts.

Which runs advance it. A cursor moves only after a full flow run in which the reader and everything downstream of it completed — running the flow from the designer, from a schedule, or headlessly. Previewing a node, running a single node, or cancelling a run never advances it. A failure anywhere downstream leaves the cursor where it was, so the next run replays the same window.

Delivery is at-least-once. Because the cursor advances after the run rather than during it, a run that succeeds but whose commit fails, or one that is killed between writing and committing, will re-deliver its window. Make the downstream write idempotent — upsert on a key rather than append.

Cursor identity. By default a cursor belongs to the node in the flow it lives in: two flows reading the same table each get their own position, and each sees every change. Give the reader a Cursor name to share one position across flows or notebooks instead — named cursors are global to the table, so whichever run reads first consumes the window for all of them. Names may contain letters, digits and _ . : -.

A named cursor is required outside a saved flow

The default cursor key is built from the flow's identity, so a reader in an unsaved flow has nothing to key on. Save the flow first, or give the cursor a name. In flowfile_frame, changes_since="last_run" needs changes_consumer= unless the graph is registered in the catalog.

Where a cursor starts. The first run with no cursor yet is governed by Start from: Now (the default) initializes the cursor at the current version and reads nothing, so processing starts with the next change; Beginning replays everything recorded since tracking was enabled.

Reset and delete. The reader's settings and the table detail page both list the table's cursors with how far behind they are, and offer Reset (move to the current version, skipping unread changes) and Delete (forget the position entirely — the next run re-initializes per Start from). Resetting to the beginning replays all tracked history.

Delta tables at a cloud path

A Read from cloud provider node in the Delta Lake format reads the change feed straight from the table's path, with no catalog entry. Three things work differently from a catalog table:

  • No cursor. A bare path has nowhere to store one, so there is no Changes since last run; each run reads the window its Changes since version or Changes since time setting describes.
  • The floor comes from the Delta log. With no catalog entry to record it in, the reader looks up the commit that turned tracking on each time it runs.
  • Tracking can be turned on without writing. The reader's Enable change tracking button adds the table property as its own commit, so the next write is the first one tracked. A Write to cloud provider node with Track changes ticked does the same as part of its write.

Moving the window on a cloud path

To process each change once without a cursor, remember the highest _commit_version a run returned and pass it as the starting version of the next run. Define an integer flow parameter, pick it under Since version in the reader, and set it per run — a headless run takes it as --param, a published API as a query parameter:

flowfile run flow orders_sync.yaml --param since_version=41

That run reads every commit after version 41. Running it again with the same value reads the same window again, so keep the downstream write idempotent, as with a cursor.

What each write mode produces

Any write to a tracked table records changes, but what shows up in the feed depends on how the data was written:

  • Upsert, update, delete record exactly the rows they touched, with update_preimage/update_postimage pairs for modified rows. This is the combination change tracking is built for, and both writers offer it.
  • Append records its new rows as inserts.
  • Overwrite is not offered with Track changes on either writer (track_changes with write_mode="overwrite" is a validation error, as are the catalog's "virtual" and "scd2"). A tracked table that some other flow overwrites still produces a feed — but as a full set of deletes followed by a full set of inserts, which is rarely what a downstream consumer wants.

Vacuum and history retention

A change feed can only be read while the underlying Delta history is still on disk. Vacuum reclaims files older than the retention window, which can put the versions a cursor still needs out of reach.

Flowfile guards against that for catalog tables: a vacuum that would drop history a cursor still points into is refused with a warning listing the cursors at risk, and the dialog offers Vacuum anyway if you accept the loss. If a read later lands on a version that no longer exists, the reader fails with an error telling you to reset the cursor. A cloud path has no cursors to protect and no vacuum action in Flowfile, so a vacuum run on it by another tool is not checked.

Overwrite commits are the fragile case: their change feed is reconstructed from the files the overwrite replaced, so a vacuum breaks it. Merge-based writes (upsert, update, delete) materialize their changes explicitly and survive.

From Python

read_catalog_table and SchemaReference.read_table take changes_since — an int for a version, "last_run" for a cursor, or an ISO-8601 string / datetime for a timestamp — plus changes_consumer, changes_start and include_change_preimage. See Catalog References for the full signatures.

The tested example below writes a table twice with tracking on, then reads its change feed through a named cursor:

import flowfile as ff

schema = ff.default_schema()

# track_changes turns the table's change feed on; every write after it records its row changes.
day1 = ff.from_dict({"order_id": [1, 2], "status": ["new", "new"]})
ff.write_catalog_table(
    day1, "docs_orders_changes", schema=schema,
    write_mode="upsert", merge_keys=["order_id"], track_changes=True,
)

day2 = ff.from_dict({"order_id": [2, 3], "status": ["shipped", "new"]})
ff.write_catalog_table(
    day2, "docs_orders_changes", schema=schema,
    write_mode="upsert", merge_keys=["order_id"], track_changes=True,
)

# A named cursor is stored per table, so a scheduled flow resumes where it left off.
# "beginning" replays everything tracked; "now" (the default) starts at the current version.
changes = ff.read_catalog_table(
    "docs_orders_changes", schema=schema,
    changes_since="last_run", changes_consumer="docs-order-feed", changes_start="beginning",
)

For a cloud path, ff.scan_delta and ff.read_from_cloud_storage (with file_format="delta") take the same changes_since and include_change_preimage, without "last_run": a cloud path keeps no cursor, so "last_run" raises a ValueError. See Reading Data. The tested example upserts into a Delta table on S3 twice, then reads everything committed after version 0:

# The first write creates the table (version 0) with its change feed on.
day1 = ff.from_dict({"order_id": [1, 2], "status": ["new", "new"]})
day1.write_delta(
    table_path, connection_name="analytics-s3",
    write_mode="upsert", merge_keys=["order_id"], track_changes=True,
)

day2 = ff.from_dict({"order_id": [2, 3], "status": ["shipped", "new"]})
day2.write_delta(
    table_path, connection_name="analytics-s3",
    write_mode="upsert", merge_keys=["order_id"], track_changes=True,
)

changes = ff.scan_delta(table_path, connection_name="analytics-s3", changes_since=0).collect()
print(changes.select("order_id", "status", "_change_type").sort("order_id"))

The feed holds order 2 as update_postimage and order 3 as insert, both at _commit_version 1. Order 1 is absent: the second write did not touch it.
